$3,999.00 AUD
The VOLK RACING 21C adopts a dimple design that carries on the DNA of the original VOLK RACING Gr.C on its spokes in combination with a stepped rim. These forged one-piece wheel models with various step rim widths up to 12J, which can be applied to wide bodies, are supreme wheels that can only be realized by RAYS forging method. The VOLK RACING 21C, which was developed for the fantastic vehicles produced during and after the 80s using the latest design and analysis technologies debuts as a forged one-piece model that is both new and nostalgic at the same time.
| INCH | SIZE | RIM TYPE | FACE | INSET | HOLE | P.C.D. | DRILL | BORE | PRICE | BIG CALIPER CLEARANCE |
|---|---|---|---|---|---|---|---|---|---|---|
| ( ): Rim Depth | BR&VC Color | |||||||||
| 18 | 8 1/2J | S(39mm) | FACE-1 | 35 | 5 | 100 | φ29-φ15 | φ65 | ¥78,000 |
▼
|
| 35 | 5 | 114.3 | φ29-φ13 | φ73.1 |
▽Θη■⊿◎♯△○☆
|
|||||
| 9J | M(46mm) | FACE-1 | 30 | 5 | 100 | φ29-φ15 | φ65 | ¥79,000 |
▼
|
|
| FACE-2 | 20 | 5 | 114.3 | φ29-φ13 | φ73.1 |
▽Θη■⊿♯△○☆
|
||||
| 9 1/2J | M(46mm) | FACE-1 | 30 | 5 | 114.3 | φ29-φ13 | φ73.1 | ¥80,000 |
▽Θη■⊿♯△○☆
|
|
| FACE-2 | 20 |
▽Θη■⊿♯△○☆
|
||||||||
| L(70mm) | 0 |
▽Θη■⊿♯△○☆
|
||||||||
| 10J | L(70mm) | FACE-1 | 15 | 5 | 114.3 | φ29-φ13 | φ73.1 | ¥81,000 |
▽Θη■⊿♯△○☆
|
|
| LL(95mm) | FACE-2 | -25 |
▽Θη■⊿♯△○☆
|
|||||||
| 10 1/2J | L(70mm) | FACE-2 | 15 | 5 | 114.3 | φ29-φ13 | φ73.1 | ¥82,000 |
▽Θη■⊿♯△○☆
|
|
| FACE-3 | 0 |
▽Θη■⊿◎♯△○☆◆
|
||||||||
| LL(95mm) | -25 |
▽Θη■⊿◎♯△○★◆
|
||||||||
| -40 |
▽Θη■⊿◎♯△○☆◆
|
|||||||||
| 11J | LL(95mm) | FACE-2 | 0 | 5 | 114.3 | φ29-φ13 | φ73.1 | ¥83,000 |
▽Θη■⊿♯△○★
|
|
| LLL(108mm) | FACE-3 | -30 |
▽Θη■⊿◎♯△○★◆
|
|||||||
| 11 1/2J | LL(95mm) | FACE-3 | -20 | 5 | 114.3 | φ29-φ13 | φ73.1 | ¥84,000 |
▽Θη■⊿◎♯△○☆◆
|
|
| LLL(108mm) | -40 |
▽Θη■⊿◎♯△○☆◆
|
||||||||
| 12J | LLL(108mm) | FACE-3 | -33 | 5 | 114.3 | φ29-φ13 | φ73.1 | ¥85,000 |
▽Θη■⊿◎♯△○☆◆
|
|

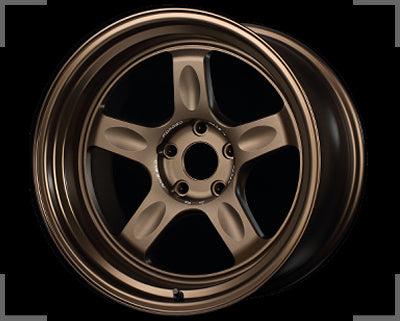

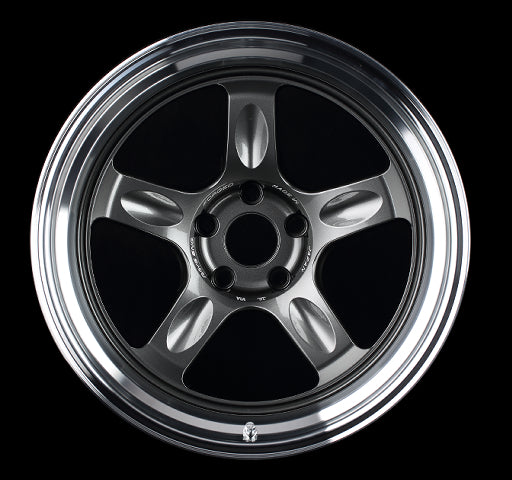

The design with dimples on the spokes is the RAYS traditional form inherited from the VOLK RACING Gr.C. In addition to the dimple form that is symbolic of the wheel, the latest design and analysis technologies were applied in earnest to advance the wheel to produce 21C as a new 'C' for the 21st century.
We also worked hard on the design on the back side of the spokes. Needless to say, the cross section has a U shape. The opposite sides of the dimples were also raised to secure the cross-sectional thickness, which has realized optimal strength and rigidity.

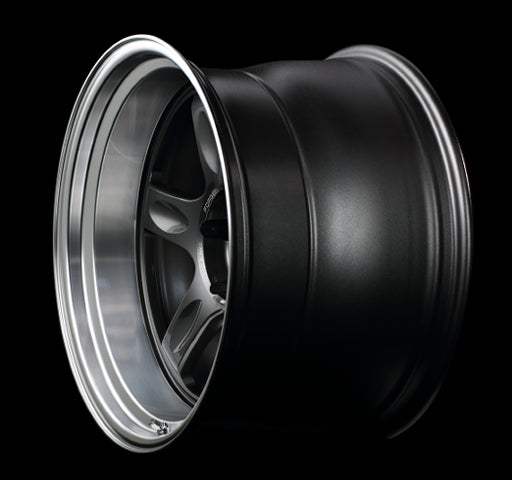

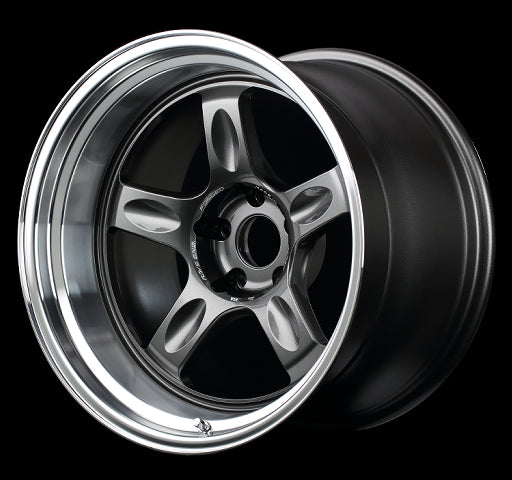

Five types of rims in various sizes from S (39 mm) to LLL (108 mm) and three types of face designs with different concaves are available. These forged one-piece wheel models with various step rim widths up to 12J are supreme wheels that can be realized only by RAYS forging method.
Engraved 'RAYS ENG./FORGED/MADE IN JAPAN' letters by RAYS Patented Technology: A.M.T. (Advanced Machining Technology) on the center part emphasizes the finishing.
* Price from $3999 (18X8.5 5/100 +35)
* POA on other size and ETA
